Full-band optical solution expert

1.8mm LIR0077-0J

  • 1.8mm LIR0077-0J
  • 1.8mm LIR0077-0J
  • 1.8mm LIR0077-0J

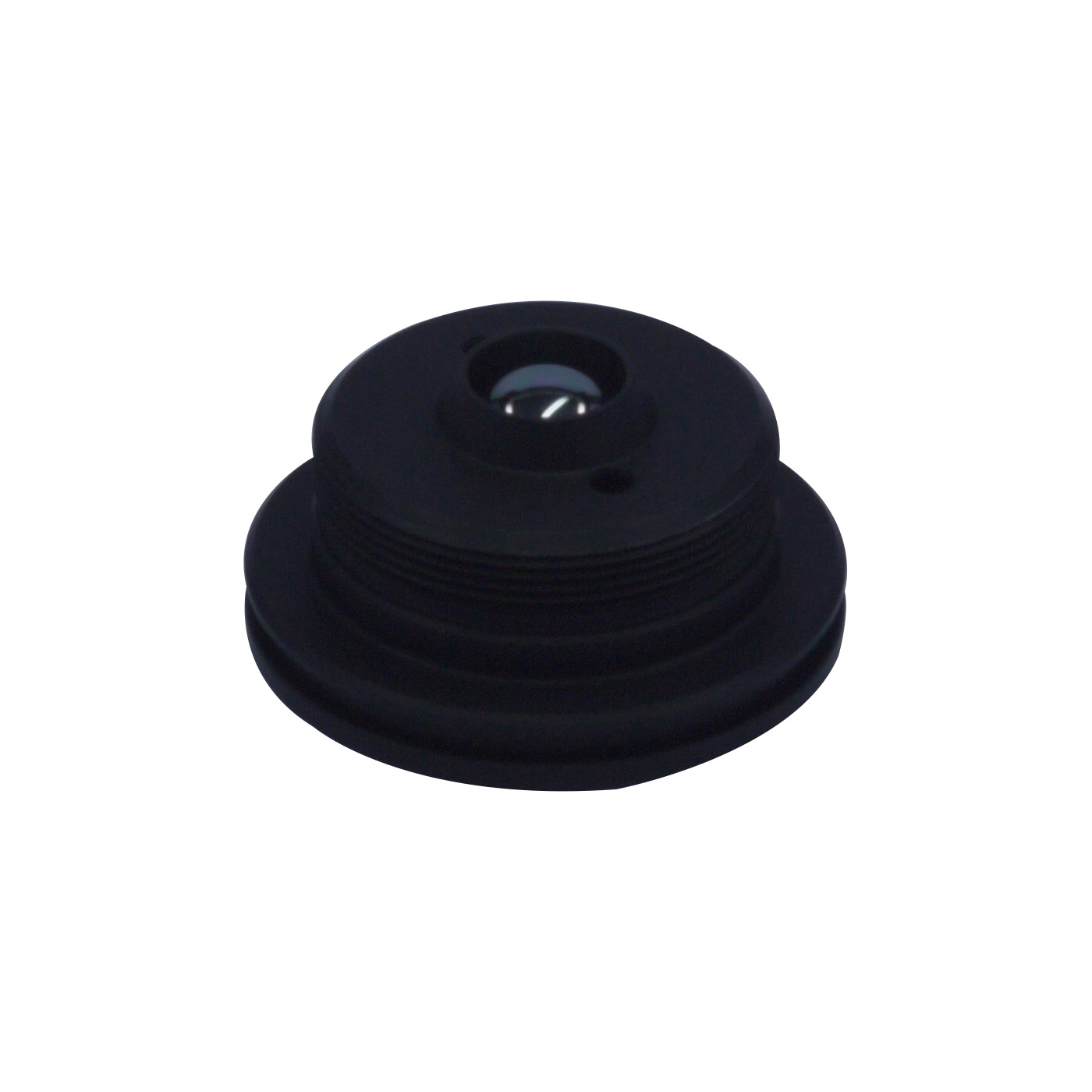

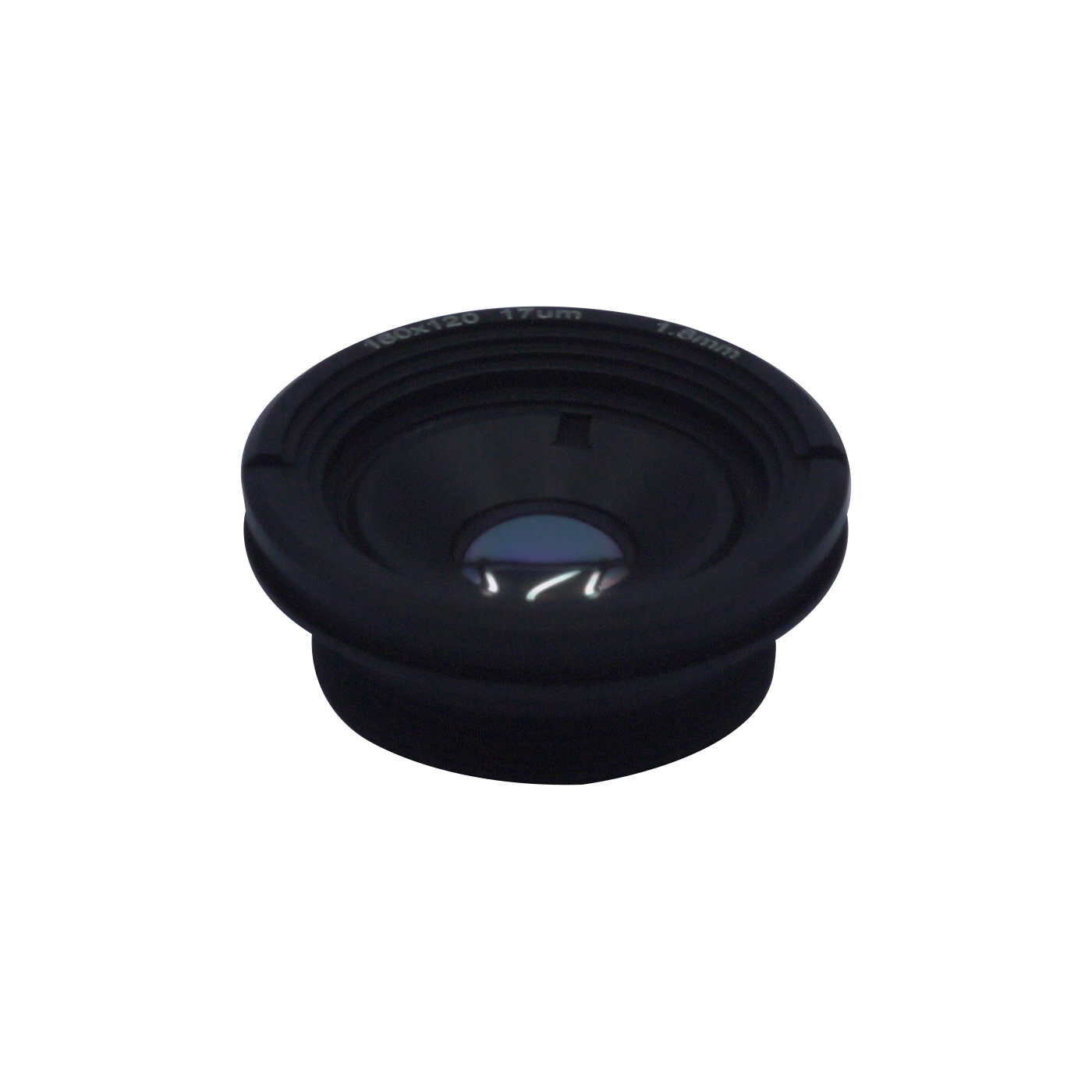

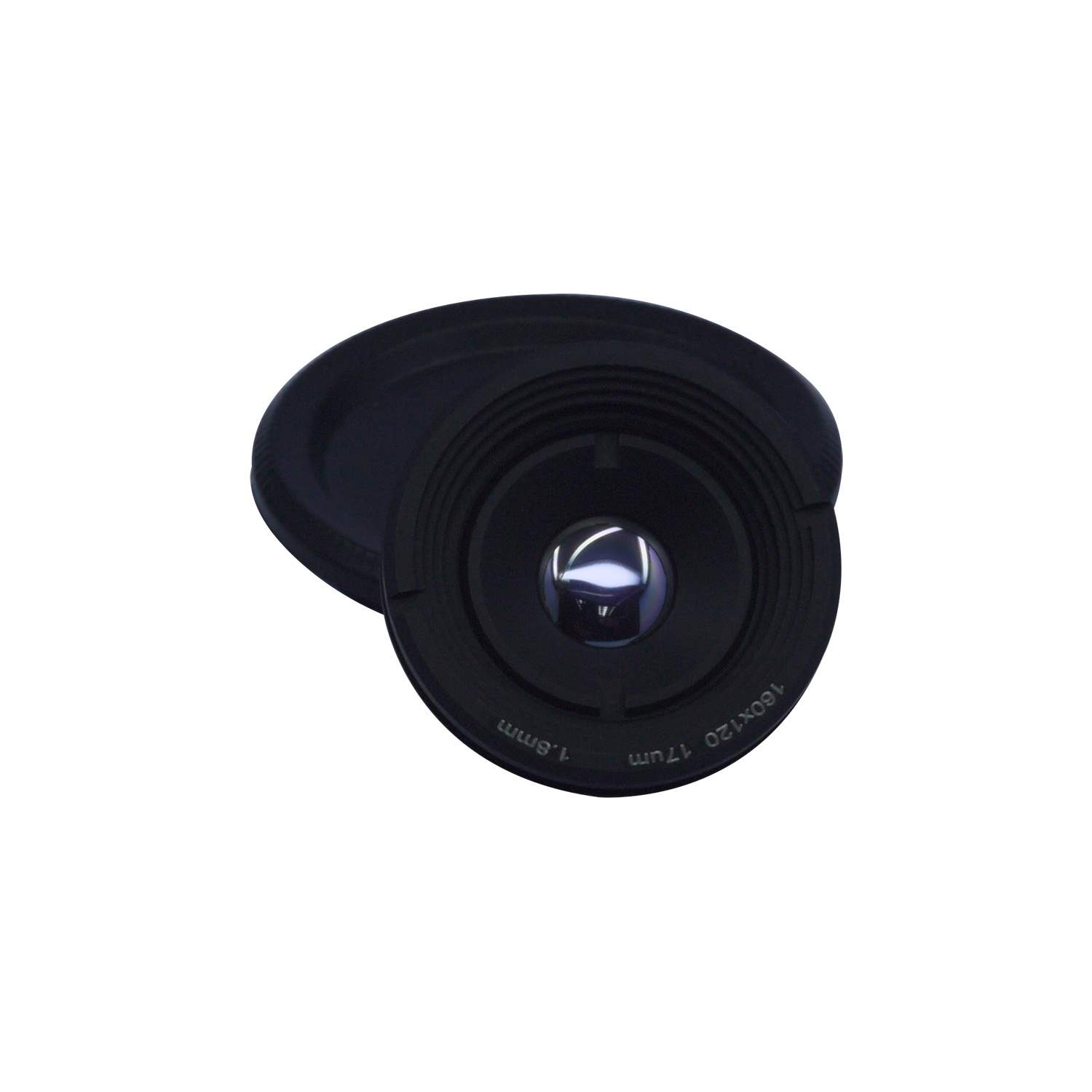

1.8mm LIR0077-0J
1.8mm LIR0077-0J
1.8mm LIR0077-0J
+

The company's main products include: infrared, near-infrared series; FA (industrial lenses), machine vision, CCTV security; various types of eyepieces, objectives; motorized zoom lenses, movie lenses, telecentric lenses, interferometer lenses; interchangeable lenses, digital camera lenses, scanner lenses; copiers, telescopes, medical equipment lenses, automotive lenses, and customized services covering the full range of optical lenses. The company's products are sold at home and abroad, and its customer base covers Japan, Europe, America, and Southeast Asia.


Keywords:

1.8mm LIR0077-0J

Category:

17μm far-infrared thermal imaging lens


Telephone:400-060-1333


Product Description

1. The working wavelength is 8-12µm;
2. Equipped with a 17µm high-definition far-infrared detector;
3. Athermal optical design ensures stable imaging in environments ranging from -40°C to +80°C;
4. Customizable development of various different interfaces is available;
5. The infrared thermal imaging product, in conjunction with the camera, can accurately quantify and analyze the detected heat;
6. Applications include medical monitoring, power, steel, chemical, environmental protection, security, aquaculture, and automotive industries;

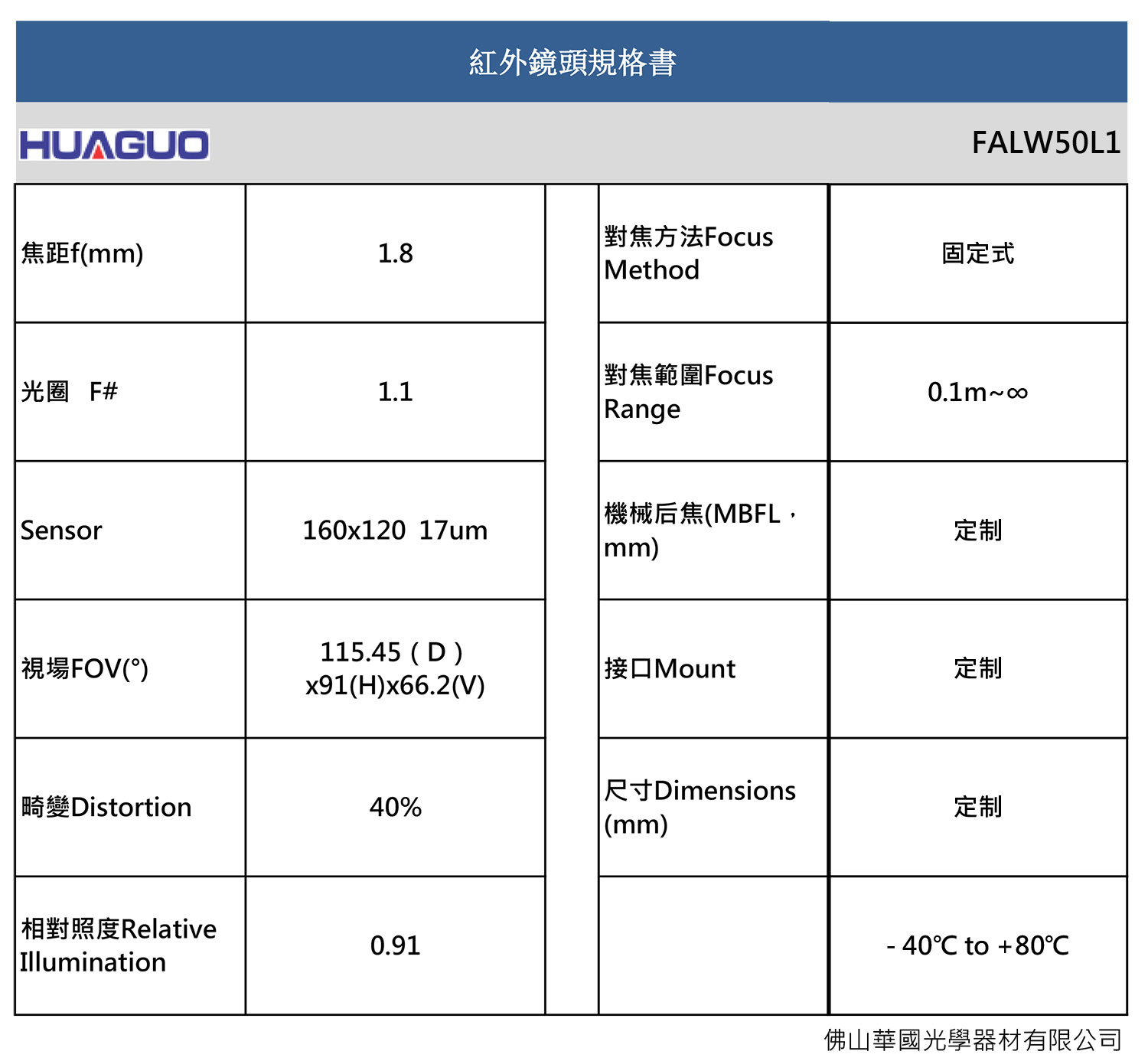

Detailed Specifications

Optical Performance

Structure and Shape
