Liquid telecentric lens

  • Liquid telecentric lens
Liquid telecentric lens
+

The company's main products include: infrared, near-infrared series; FA (industrial lenses), machine vision, CCTV security; various types of eyepieces, objectives; motorized zoom lenses, movie lenses, telecentric lenses, interferometer lenses; interchangeable lenses, digital camera lenses, scanner lenses; copiers, telescopes, medical equipment lenses, automotive lenses, and customized services covering the full range of optical lenses. The company's products are sold at home and abroad, and its customer base covers Japan, Europe, America, and Southeast Asia.


Keywords:

Liquid telecentric lens

Category:

Liquid telecentric lens


Telephone:400-060-1333


Product Description

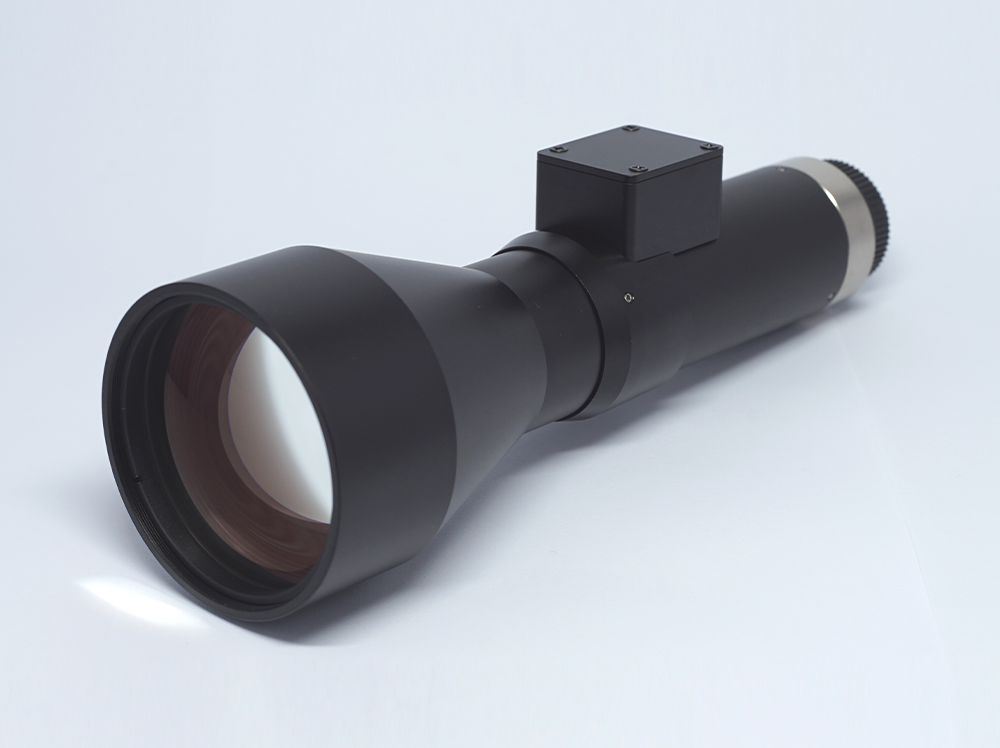

Using a liquid lens, the refractive power is changed in milliseconds by changing the refractive index, curvature, or thickness of the liquid lens. No physical contact is required; rapid focusing is achieved through an electrical control scheme without changing the refractive index of the liquid lens, only the curvature. With a double telecentric design, a working distance of 90-140 mm, low distortion, and high resolution, it can be used in applications such as close-range image recognition and quality inspection.

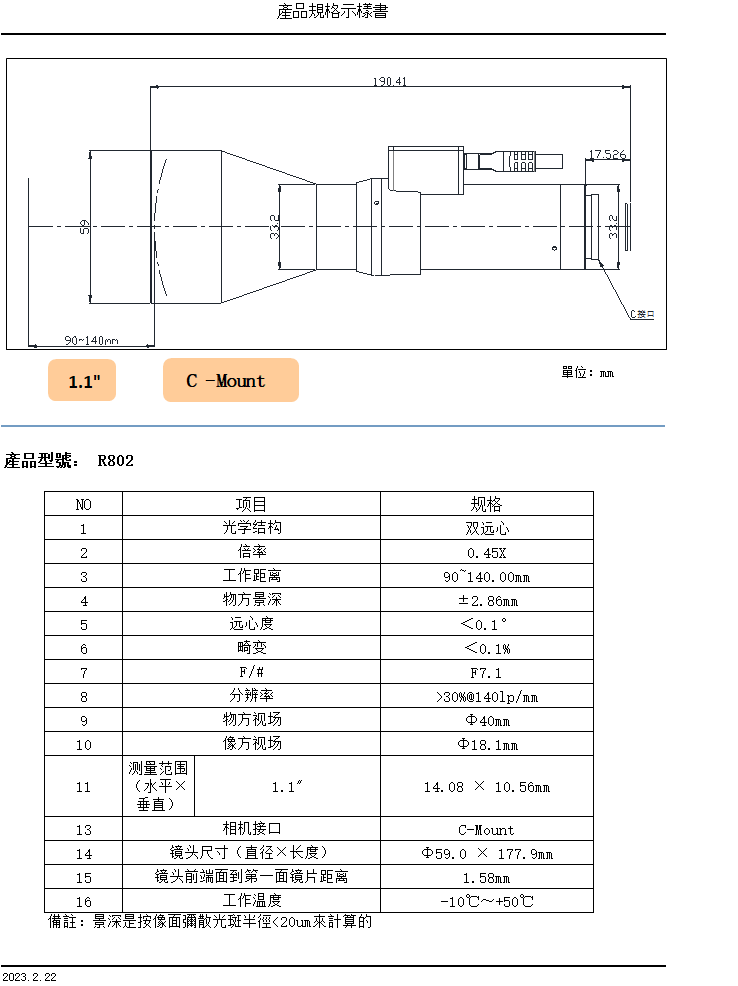

Detailed Specifications

Optical Performance

Structure and Shape
